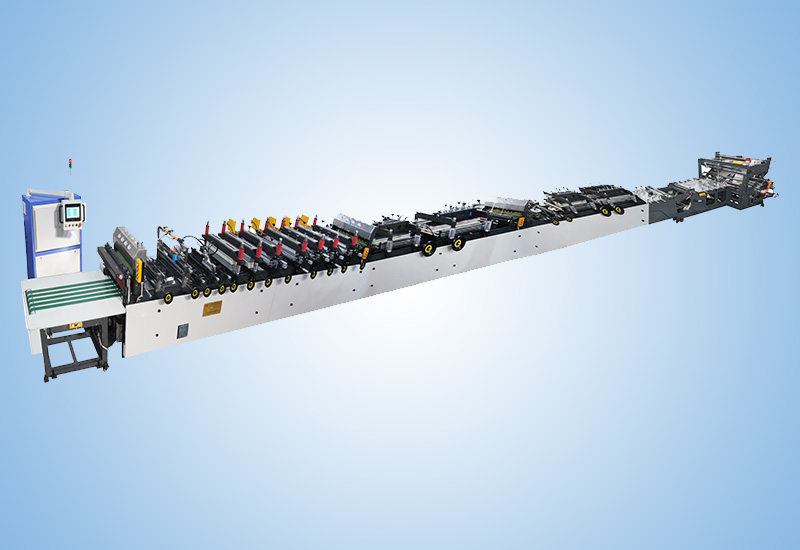

Hello, Your Current Location:Product CenterHM-500A professional intermediate sealing machine (three traction)


Detailed description

HM-500A is a special high-speed step pressure middle sealing, side sealing and four side sealing bag making machine, which uses PLC and feeding AC digital servo system to control the machine's super long sealing and ironing knife to reasonably combine bag making precision with bag making speed, so as to meet the requirements of making super long bags. The shape and technical parameters of the machine will be improved without notice. The specific requirements can be designed and customized according to the needs of customers.

Technical parameter

Material: suitable for various heat sealing Composites

Host: 3Kw×1=3Kw

Drum size: maximum width: 1050mm maximum diameter: 600mm

Discharging: 0.55Kw×1=0.55Kw

Bag making speed: 180 segments / min (actual speed depends on material and bag shape)

Longitudinal seal: 2Kw×5=10Kw

Bag making width: 500mm

Horizontal seal: 2Kw×6=12Kw

Bag making length: 50-415mm (double feeding function can be adopted for extra long time)

Control system, etc.: 1KW

Bag making parameters: display with CRT; Automatic counting and punching time can be preset, and continuous, interval and non punching

Total: 29.05Kw

Etc

Cooling water: about 15L/ min

Information prompt: photoelectric loss, temperature out of tolerance, intermediate tension, material breaking and shutdown.

Air source: 0.6mpa

Unwinding: LPC deviation correction, automatic constant tension control.

Weight: about 4000kg

Feeding:1Kw×1+1.5Kw=2.5Kw

Overall dimension: 11500×1560×1550mm (L×W×H)
